Product Specifications

Product Parameter	Details
Substrate Options	Stainless steel, aluminum sheet, cold-rolled steel sheet, hot-dip galvanized steel sheet, galvalume steel sheet
Thickness / Width	0.09–1.5 mm; 750/1500 mm
Coil Inner Diameter	508 mm / 610 mm
Coating Thickness	8–30 μm
Customization	Dimensions, color, coating, surface, LOGO, substrate

Multi-Industry Metal Sheet Supply

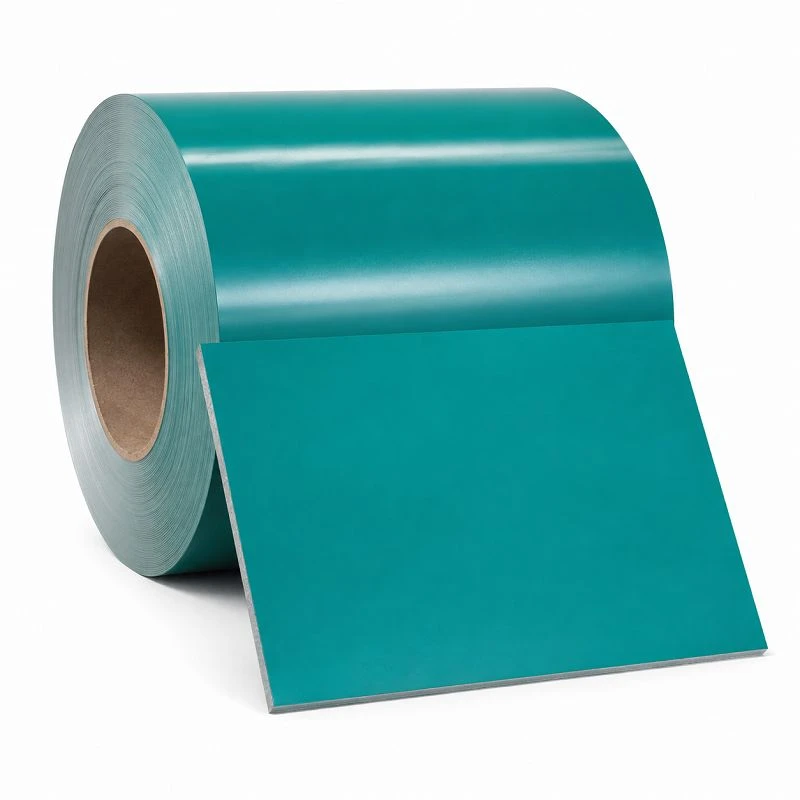

Color coated steel plate is a coated metal sheet option serving construction, appliance, transportation, furniture, and advertising applications. Purchasers can choose stainless steel, aluminum sheet, cold-rolled steel sheet, hot-dip galvanized steel sheet, or galvalume steel sheet as the substrate. Thickness ranges from 0.09 to 1.5 mm, widths are 750 mm and 1500 mm, coil inner diameter can be 508 mm or 610 mm, coil length can be customized, and coating thickness is 8–30 μm.

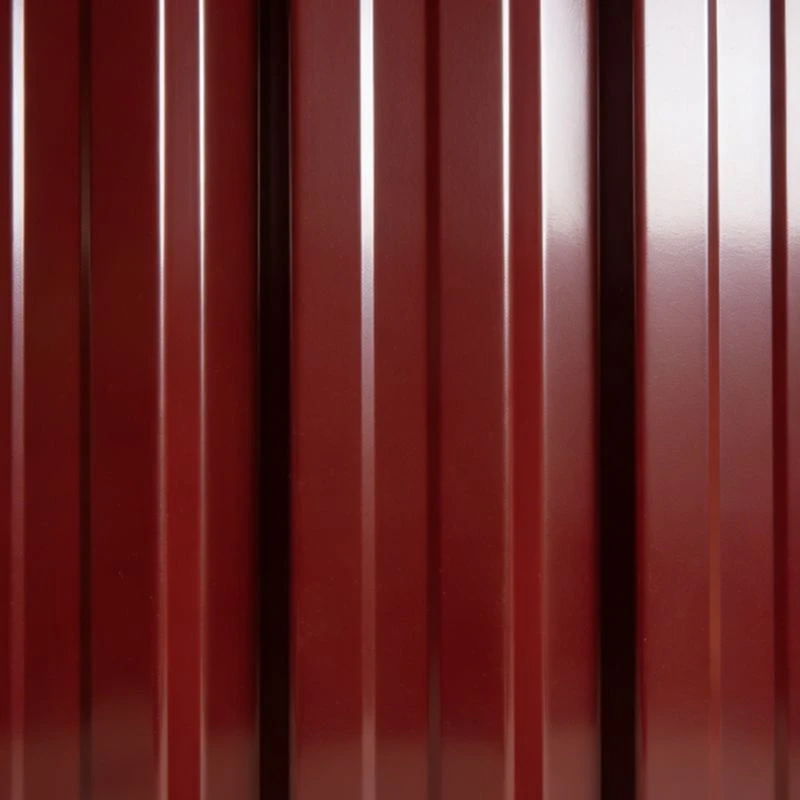

Available colors include sea blue, white gray, gray, crimson, dark green, and ivory white. Pantone and RAL color references are also supported for projects that require defined color matching.

Application-Driven Specification Selection

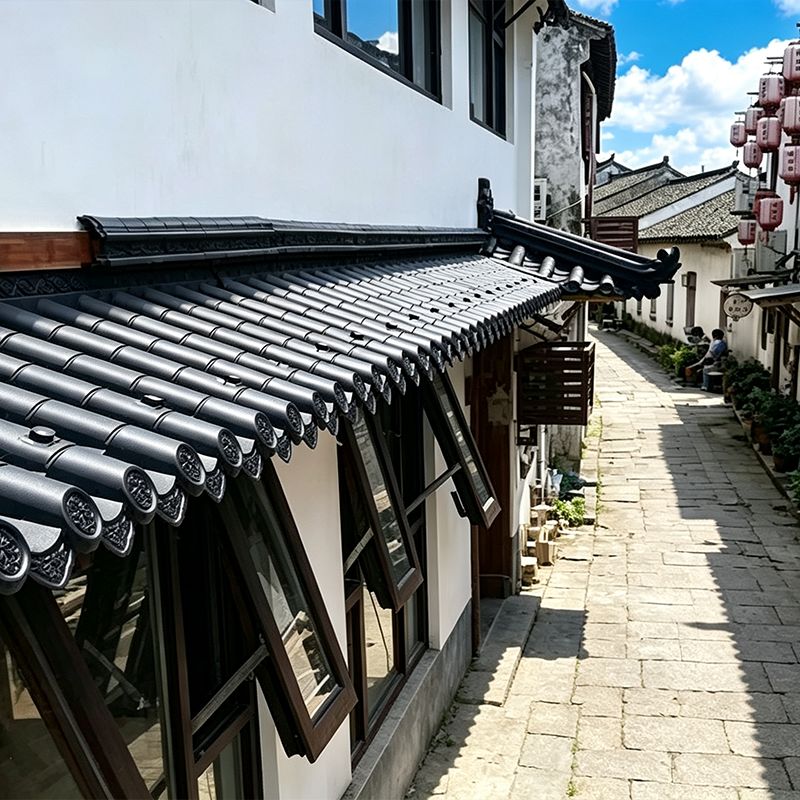

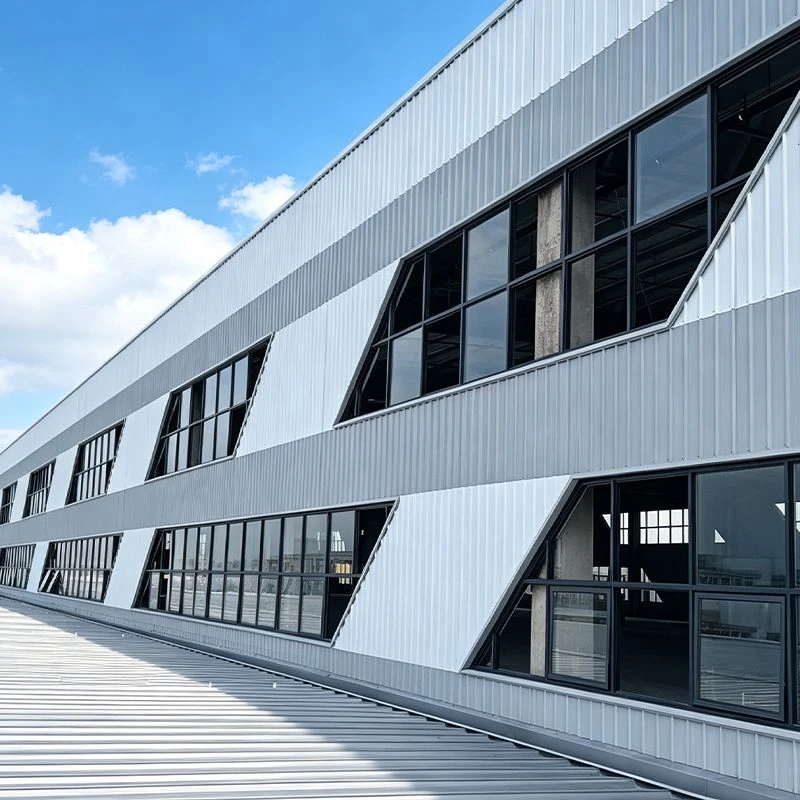

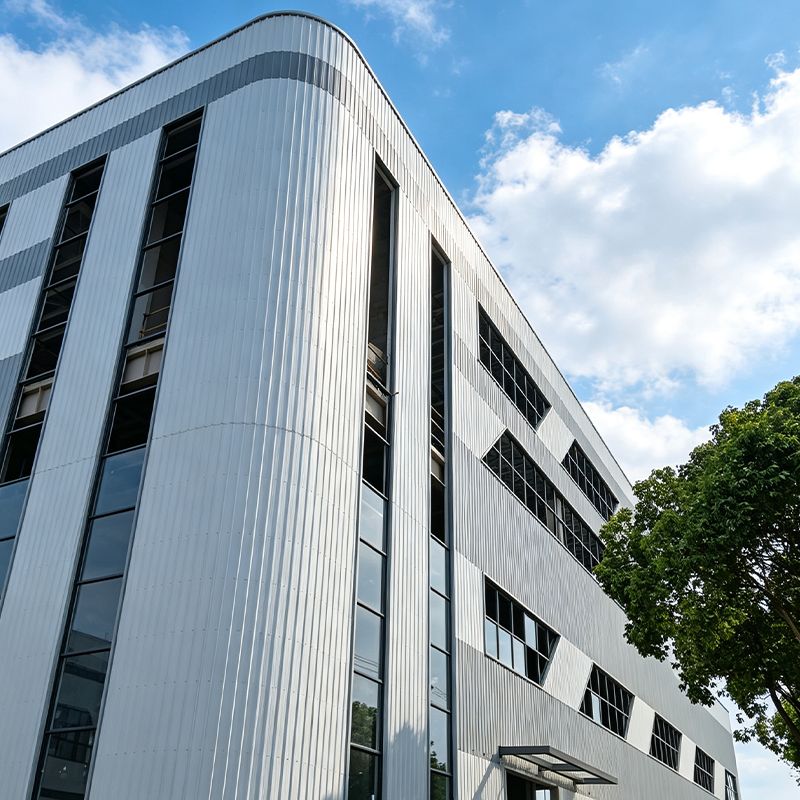

The product can be used for factory roofs and walls, building enclosures, curtain walls, refrigerator panels, washing-machine and air-conditioner housings, containers, automotive interior parts, office furniture, cabinets, signs, and advertising boards.

Surface effects include plain, pearlescent, metallic, embossed, matte, printed, and anti-fingerprint options. Buyers can also customize thickness, width, length, coating material, substrate, and LOGO printing. A practical way to prepare the order is to start from the final product or project use, then work backward to the required substrate, dimensions, color, and finish.

Product application

Integrated Materials and Production Capability

Pingyuan Wente Industry Co., Ltd. has built a product system extending from polyester resin and coil coating to color-coated sheet since 2004. The company has 103 employees, a research and development team of more than 30 people, and a professional quality inspection organization.

Incoming raw materials are checked before use, production is managed under unified procedures, and finished products are inspected before packing according to the relevant indicators of the approved customer sample. Full inspection is completed before shipment preparation. Free samples can be supplied for orders with important color or appearance requirements, and buyers may also arrange third-party inspection.

Packing for Coil and Flat-Sheet Orders

Export protection is selected according to product form. Coils use kraft paper, waterproof plastic film, iron corner guards, and steel straps. Flat sheets use EPE foam film, rigid cartons, and wooden pallets, with waterproof and moisture-resistant packing measures.

Photos and videos can be supplied during production, packing, and dispatch. Standard production normally requires about 3 days, customized production around one week, and the MOQ is approximately 30 tons. Repeat orders receive priority scheduling. color coated steel plate can therefore support customers purchasing several colors or specifications over multiple batches while keeping previously confirmed requirements as an order reference.
