Product Specifications
|
Specification |
Details |
|
Substrate Types |
Stainless steel, aluminum sheet, cold-rolled steel sheet, hot-dip galvanized steel sheet, galvalume steel sheet |
|
Thickness |
0.09–1.5 mm |
|
Width / Inner Diameter |
750/1500 mm; 508/610 mm |
|
Colors |
Sea blue, white gray, gray, crimson, dark green, ivory white; Pantone/RAL customization |
|
Coating Thickness |
8–30 μm |

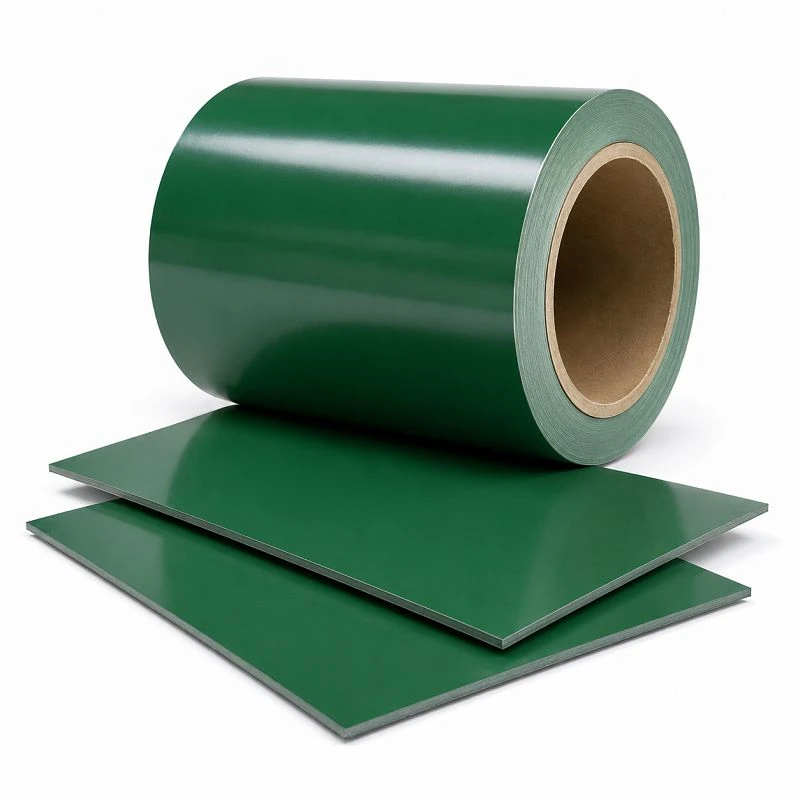

Color and Surface Specification for Finished Metal Products
Colored galvanized steel sheets support projects where metal appearance, dimensional requirements, and substrate selection need to be specified together. Buyers can choose stainless steel, aluminum sheet, cold-rolled steel sheet, hot-dip galvanized steel sheet, or galvalume steel sheet as the substrate. Thickness ranges from 0.09 to 1.5 mm. Width options are 750 mm and 1500 mm, while coil inner diameter is 508 mm or 610 mm. Coil length can be customized, and the coating thickness is 8–30 μm.
Standard color choices include sea blue, white gray, gray, crimson, dark green, and ivory white. Custom matching is also available using Pantone or RAL references. Surface options extend beyond plain coating to pearlescent, metallic, embossed, matte, printed, and anti-fingerprint finishes. These combinations allow the material specification to be adjusted around the final visual requirement.
Applications from Appliances to Architectural Panels
The product range can be used for factory roofs and walls, construction enclosures, curtain walls, refrigerator panels, washing-machine housings, air-conditioner housings, containers, automotive interior components, office furniture, cabinets, signs, and advertising boards.
For appliance and furniture projects, buyers can confirm color, finish, and later bending or stamping requirements during sampling.
Construction and advertising projects can place greater emphasis on thickness, width, length, and project color. This application-led approach helps purchasing teams define the sheet according to the final product rather than ordering only by a general material name.
Product application
Inspection Focused on Approved Appearance
Pingyuan Wente Industry Co., Ltd. has operated in polyester resin, color-coated sheet, paint, and coating products since 2004. The company has a professional quality inspection organization with a UV weathering test chamber, salt spray test chamber, and color difference meter. It has established ISO9001 quality management and ISO14001 environmental management systems.
Raw materials are checked before production. The manufacturing process is controlled under unified procedures, and finished products are inspected before packing against the relevant indicators of the customer-approved sample. Full inspection is carried out before packing, and third-party inspection is accepted. Samples can also be provided before mass production to confirm color or surface
Packing and Repeat Supply
Coils use kraft paper, waterproof plastic film, iron corner guards, and steel straps for protection. Sheet products can be packed with protective film, rigid cartons, and wooden pallets, with waterproof and moisture-resistant measures included.
Photos and videos can be shared from production through shipment. Standard orders normally require about 3 days, while customized production generally takes about one week. Repeat orders can receive priority. For customers purchasing colored galvanized steel sheets in multiple batches, previously approved dimensions, colors, and surface requirements can continue to serve as references for later replenishment.
